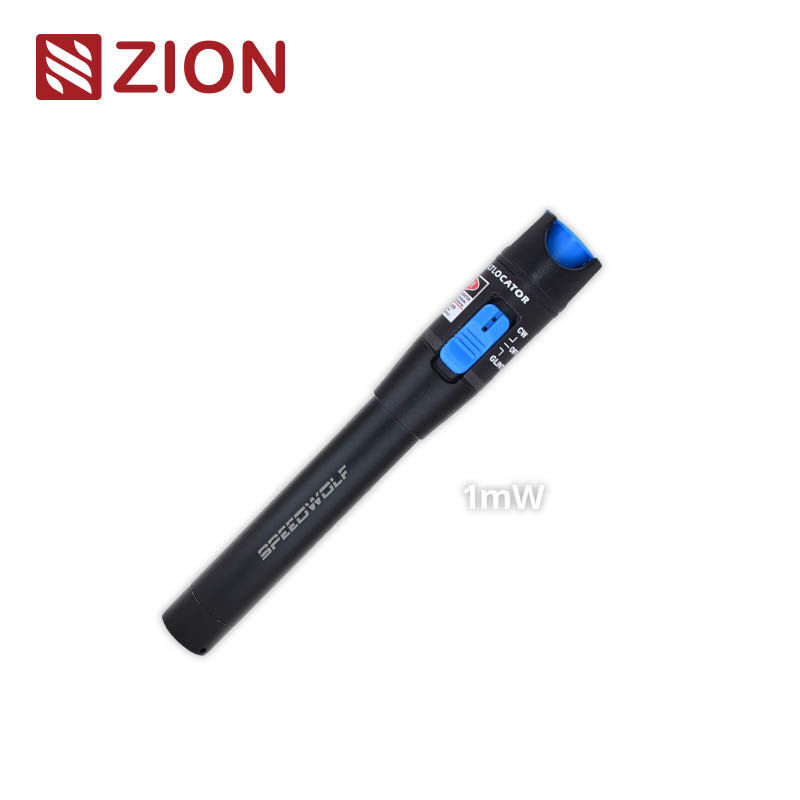

Low-Power 1mW Fiber Visual Fault Locator VFL for FTTH Fiber Fault Detection

Thông tin cơ bản
Nguồn gốc: Ningbo Trung Quốc
Hàng hiệu: OEM
Số mô hình: Bộ dụng cụ sợi quang
Số lượng đặt hàng tối thiểu: 10 hộp
chi tiết đóng gói: 1pcs/hộp
Thời gian giao hàng: 5-25 ngày
Thông tin chi tiết
Làm nổi bật:

1mW Fiber Visual Fault Locator

,

Low-Power VFL

,

FTTH Fiber Fault Locator


Mô tả sản phẩm

 Fiber Visual Fault Locator (VFL)

Low-Power Version

ZION Model Code: ZC-VFL-1

Product Overview

ZION Fiber Visual Fault Locators provide fast and visible identification of fiber breaks, bends, poor splices, and connector faults.
Featuring an imported laser diode and aluminum alloy housing, they ensure stability and durability in field environments.

  • Imported laser head with high thermal conductivity

  • Rugged aluminum alloy enclosure

  • Replaceable ceramic ferrule

  • Continuous and 2 Hz modulation modes

Technical Specifications

Parameter Specification
Output Power 1 mW
Test Distance 3–5 km
Wavelength 650 nm
Modulation 2 Hz
Connector Universal 2.5 mm
Laser Type LD
Battery 2 × AA
Working Temp. 0 °C ~ +60 °C
Storage Temp. –20 °C ~ +70 °C
Weight 85 g
Dimensions 175 × 26 × 26 mm
