| Nguồn gốc: | Ningbo, Thượng Hải |
|---|---|
| Hàng hiệu: | Zion communication |
| Số mô hình: | FR331-UN |
| Số lượng đặt hàng tối thiểu: | 10 km |
| chi tiết đóng gói: | cuộn, ống gỗ, thùng carton, pallet |
| Thời gian giao hàng: | Thông thường 25 ngày làm việc |

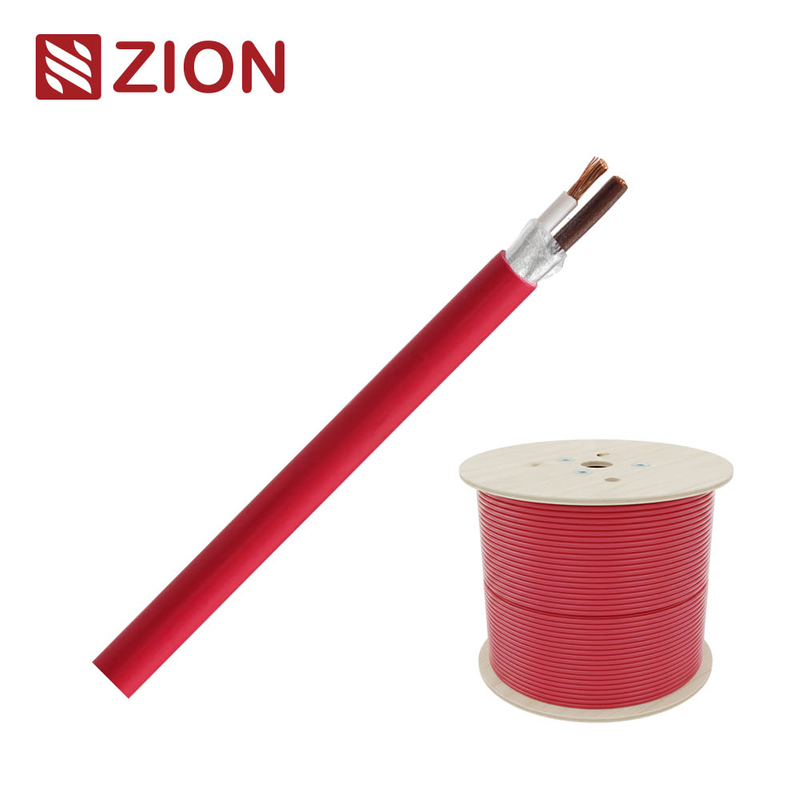

Fire Resistant Cable 2 × 1.5 sq mm | BS 6387 / IEC 60331 / LSZH (Red RAL 3000)
| Item | Specification |
|---|---|
| Product Name | Fire Resistant Cable |
| Model No. | FR6387-UN-0215 |
| Construction Type | CU / FR / LSZH (Unscreened) |
| Conductor Material | Stranded Bare Copper (Class 5, EN 60228) |
| Conductor Size | 28 × 0.25 mm |
| Nominal Cross Section | 2 × 1.5 sq mm |
| Rated Voltage | 300 / 500 V |
| Operating Temperature | −30 °C ~ +90 °C |
| Outer Color | Red RAL 3000 |
| Applicable Standards | IEC 60331-21 (FE180), BS 6387 CAT B/C, IEC 60332-1-2, IEC 60332-3-24, EN 50200 PH120, CE, RoHS |
| Component | Material / Description | Standard | Dimensions |
|---|---|---|---|
| Conductor | Stranded Bare Copper | EN 60228 | 28 × 0.25 mm |
| DC Resistance (20 °C) | — | EN 60228 | 13.3 Ω/km |
| Insulation | Silicone Rubber (Heat Resistant) | IEC/EN 60811-203 | 0.45 mm thick |
| Insulation Diameter | — | IEC/EN 60811-201 | 2.4 ± 0.1 mm |
| Insulation Colors | Brown / White | — | — |
| Insulation Resistance | > 200 MΩ/km | — | — |
| Fire Barrier Layer | Mica Tape | — | 0.14 × 22 mm |
| Overall Screen | — (Unscreened Type) | — | — |
| Drain Wire | — | — | — |
| Outer Sheath | LSZH (Low Smoke Zero Halogen) | IEC/EN 60811-202 | 0.6 mm thick |
| Outer Diameter | — | IEC/EN 60811-203 | 6.3 ± 0.2 mm |
| Pitch of Twist | — | — | 106 ± 10 mm |
| Inductance | — | — | 2.3 mH/km |
| High-Voltage Test | EN 50288-7 | 2.0 kV / 1 min | — |
| Test Item | Standard | Requirement / Description |
|---|---|---|
| Fire Resistance | IEC 60331-21 (FE180) / BS 6387 CAT B, CAT C | Maintains circuit integrity for 180 min at 750–950 °C |
| Flame Propagation | IEC 60332-1-2 / IEC 60332-3-24 / EN 50266-2-4 | Restricts flame spread on single and bunched cables |
| Smoke Density | IEC 61034-1/2 | Low smoke emission for visibility and safety |
| Corrosive Gas Emission | IEC 60754-1/2 / EN 50267 | Low acid gas, halogen-free |
| RoHS Compliance | EU Directive 2011/65/EU | Confirmed (Pb, Cd, Hg, Cr⁶⁺, PBB, PBDE Free) |
Insulation Resistance: > 200 MΩ/km
Voltage Withstand: 2.0 kV (1 min)
Inductance: 2.3 mH/km
Operating Temperature: −30 °C ~ +90 °C
Minimum Bending Radius: 10 × OD
Fire Survival Duration: 180 min (FE180 / PH120)
For critical control and power circuits that must remain operational during fire conditions
Fire-alarm and emergency lighting systems
Smoke extraction and sprinkler controls
Public buildings, tunnels, airports, hospitals, data centers
FE180 / PH120 Fire Resistance: Maintains operation up to 180 min at 950 °C
LSZH Outer Sheath: Low smoke and non-toxic gas emission
Silicone + Mica Insulation: Excellent thermal and dielectric stability
✅ Certified Quality: Conforms to IEC, BS, EN, CE & RoHS standards
