ZION standard rack PDUs are designed for cabinet-based power distribution in data centers, telecom rooms, industrial enclosures, and project-based rack systems. Multiple structure sizes, material options, and enclosure colors are available for flexible customization. ZION Standard Rack PDU Solutions are built for reliable power distribution inside rack cabinets and equipment enclosures. The product range supports multiple body structures including 1U, 1.4U, 2U, 2.5U, 3U, and square 1U formats, with aluminium alloy and mixed-material housing options. Black and white case colors are available to suit different project requirements. These standard rack PDU platforms can be combined with different outlet standards, input configurations, and functional modules to create project-specific solutions for telecom, IT, industrial, and integrated cabinet applications. The following standard rack PDU structures are listed in the ZION catalog as core platform options for customized rack power distribution.
Standard Rack PDU Solutions
1U / 1.4U / 2U / 2.5U / 3UAluminium HousingBlack / White CaseRack Power Distribution
■ Overview
■ Product Range

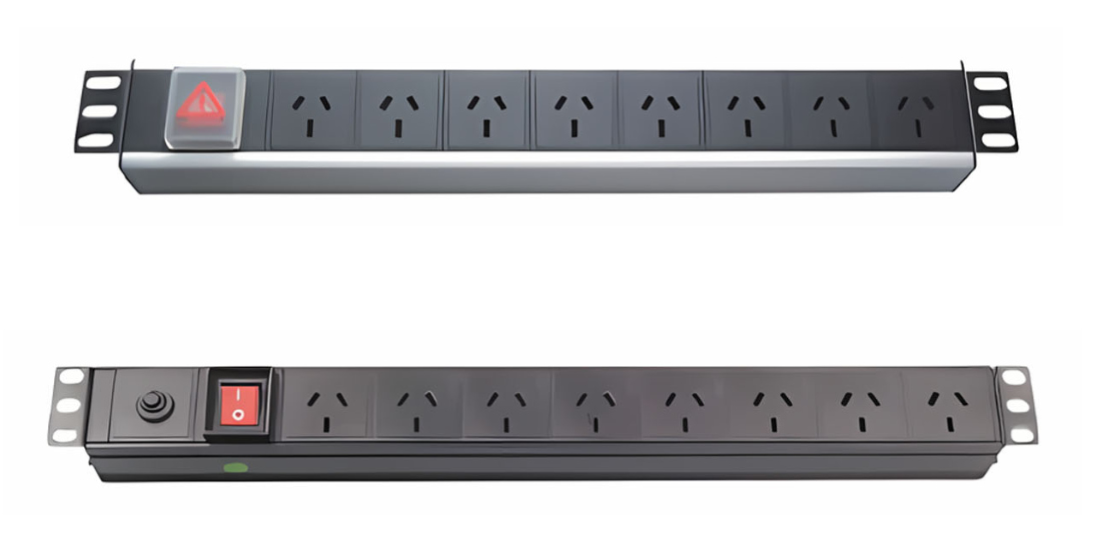

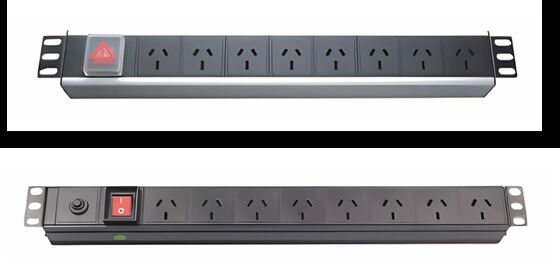

Standard 1U Rack PDU
Classic slim rack-mount format for standard cabinet power distribution applications.
Product Size:
L × W × D = X × 44.4 × 44.4 mm
1.4U Rack PDU
Expanded body profile for projects requiring additional internal layout space.
Product Size:
L × W × D = X × 62 × 44.4 mm
Slim 1U Rack PDU
Compact 1U structure with alternate depth for specific outlet and cabinet designs.
Product Size:
L × W × D = X × 44.4 × 60 mm
Mixed-Material 1U Rack PDU
1U rack PDU platform suitable for mixed-material structure configurations.
Product Size:
L × W × D = X × 44.4 × 44.4 mm
2U Rack PDU
Higher-capacity body structure suitable for more complex outlet combinations.
Product Size:
L × W × H = X × 44.4 × 88.8 mm
Wide-Body 1U Rack PDU
Extended-width 1U format for projects needing wider module arrangement.
Product Size:
L × W × H = X × 127 × 44.4 mm
2.5U Rack PDU
Special structure for industrial cabinets and customized power distribution layouts.
Product Size:
L × W × H = X × 66.6 × 111 mm
3U Rack PDU
Large-format rack structure for advanced configurations and richer module integration.
Product Size:
L × W × H = X × 44.4 × 124 mm
Square 1U Rack PDU
Compact square-body solution for special installation environments and selected socket layouts.
Product Size:
L × W × H = X × 44.4 × 44.4 mm
■ Structure Options
Product Name
Form Factor
Typical Use
Product Size
Standard 1U Rack PDU
1U
General rack cabinet power distribution
X × 44.4 × 44.4 mm
1.4U Rack PDU
1.4U
Expanded profile design
X × 62 × 44.4 mm
Slim 1U Rack PDU
1U
Alternate 1U depth structure
X × 44.4 × 60 mm
Mixed-Material 1U Rack PDU
1U
Mixed-material platform option
X × 44.4 × 44.4 mm
2U Rack PDU
2U
Higher outlet density and larger layout
X × 44.4 × 88.8 mm
Wide-Body 1U Rack PDU
1U
Wider module arrangement
X × 127 × 44.4 mm
2.5U Rack PDU
2.5U
Special industrial / customized layouts
X × 66.6 × 111 mm
3U Rack PDU
3U
Advanced module integration
X × 44.4 × 124 mm
Square 1U Rack PDU
Square 1U
Compact special-shape installation
X × 44.4 × 44.4 mm
■ Material & Color Options
Aluminium Alloy Housing
The main standard rack PDU structures are based on aluminium alloy housing for stable installation and reliable rack use.
Mixed-Material Structure
Some standard rack PDU structures also support mixed material combinations such as aluminium, plastic, and PVC for project-specific assembly requirements.
Case Color Options
White case color: Code Y-W
Black case color: Code Y-B
These options support cabinet matching, product line consistency, and OEM customization.■ Applications
Data Center Cabinets
Stable rack-level power distribution for server, switch, and network equipment deployment.
Telecom Cabinets
Reliable cabinet power integration for telecom racks and communication systems.
Industrial Control Cabinets
Adaptable formats for industrial enclosures and customized project distribution systems.
OEM / Project Orders
Suitable as the base chassis for outlet, input, protection, and monitoring customization.
